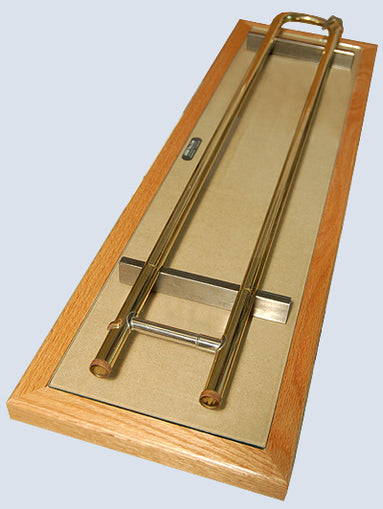

Designed for aligning both inner and outer slide
pipes, our #2076 Leveling Block is constructed using heavy plate glass enclosed
in a wood case. Two steel riser blocks machined perfectly flat set on either end
of the glass. Slide pipes are set on the riser blocks to determine skew or
twist.

Works great for soldering and reassemby work. When
soldering, simply position the area receiving the heat off of either end of the
block. To help hold pipes in place when soldering order our #2078 TROMBONE SLIDE ASSEMBLY MAGNETS.

DIMENSIONS

• overall length: 30" (76cm)

• overall width: 8.75" (22cm)

• overall height (with risers): 2" (5.1cm)

• glass length: 28" (71cm)

• glass width: 6-3/4" (17.1cm)

• glass thickness: 0.25" (6.35mm)

PLEASE NOTE

Granite blocks that are sold for doing
handslide work are designed to check pipes for straightness, alignment, and to
aid in reassembly. While granite provides a flat surface, it is quite costly as
well as heavy and cumbersome. To perform these same procedures we offer our #2075
Straight Edge and #2076 Leveling Block.

Light weight and machined perfectly flat,
our Straight Edge is designed to check pipe straightness and is easy to position
at eye level by clamping in a standard bench vise. Our Leveling Block works
great for alignment and assembly work and can be easily stored away when not in
use.
